Introduction to the DEA Wetlands Insight Tool (WIT) e210aabffb904188ae8d045f3fc7b354

Note: ga_ls9c_ard_3 can be included once derivative Water Observations and Fractional Cover products have been generated

Background

Wetlands provide a wide range of ecosystem services including improving water quality, carbon sequestration, as well as providing habitat for fish, amphibians, reptiles and birds. Managing wetlands in Australia is challenging due to competing pressures for water availability and highly variable climatic settings. The DEA Wetlands Insight Tool has been developed to provide catchment managers, environmental water holders, and wetlands scientists a consistent historical baseline of wetlands dynamics from 1987 onwards.

The DEA Wetlands Insight Tool summarises how the amount of water, green vegetation, dry vegetation and bare soil varies over time within each wetland. It provides the user with the ability to compare how the wetland is behaving now with how it has behaved in the past. This allows users to identify how changes in water availability have affected the wetland. It achieves this by presenting a combined view of Water Observations from Space, Tasseled Cap Wetness and Fractional Cover measurements from the Landsat series of satellites, summarised as a stacked line plot to show how that wetland has changed over time.

Expected output

This notebook demonstrates the method for reproducing results from the Wetlands Insight Tool. At the end of the notebook you will display and save a WIT plot:

76c8342bf0354a3f89739ec9cfc5b634

Applications

The product is designed to support wetland managers, catchment managers and environmental waterholders in understanding whether or not wetlands are changing over time. In instances where the wetlands are changing, the tool allows users to identify whether the changes are gradual, rapid, once-off or cyclical in nature. For example the response of wetlands to the following drivers can be assessed:

  • Changes in river flow volumes

  • Changes in flood frequency

  • Long term shifts in rainfall

  • Wet-season/Dry-season shifts in water availability

  • Invasive weeds

  • Environmental watering events

Care should be used when interpreting Wetlands Insight Tool results as increases/decreases in particular cover types can be associated with different processes. For example an increase in green cover could indicate canopy recovery of desirable wetland species or an increase in the amount of invasive weeds.

Publications

  • Dunn, B., Ai, E., Alger, M.J., Fanson, B., Fickas, K.C., Krause, C.E., Lymburner, L., Nanson, R., Papas, P., Ronan, M., Thomas, R.F., 2023. Wetlands Insight Tool: Characterising the Surface Water and Vegetation Cover Dynamics of Individual Wetlands Using Multidecadal Landsat Satellite Data. Wetlands 43, 37. Available: https://doi.org/10.1007/s13157-023-01682-7

  • Dunn, B., Lymburner, L., Newey, V., Hicks, A. and Carey, H., 2019. Developing a Tool for Wetland Characterization Using Fractional Cover, Tasseled Cap Wetness And Water Observations From Space. IGARSS 2019 - 2019 IEEE International Geoscience and Remote Sensing Symposium, 2019, pp. 6095-6097. Available: https://doi.org/10.1109/IGARSS.2019.8897806.

  • Krause, C., Dunn, B., Bishop-Taylor, R., Adams, C., Burton, C., Alger, M., Chua, S., Phillips, C., Newey, V., Kouzoubov, K., Leith, A., Ayers, D., Hicks, A., DEA Notebooks contributors 2021. Digital Earth Australia notebooks and tools repository. Geoscience Australia, Canberra. https://doi.org/10.26186/145234

WIT calculation

For each pixel, we calculate its WIT values based on the method of Dunn, et al., 2023.

The calculation in this flowchart below shows the workflow implemented in this notebook.


Getting Started

Load packages

[1]:

import datetime
import geopandas as gpd
import itertools
import numpy as np
import pandas as pd
import xarray as xr

import datacube

import sys

sys.path.insert(1, "../Tools/")
import dea_tools.bandindices
import dea_tools.datahandling
from dea_tools.spatial import xr_rasterize
from dea_tools.dask import create_local_dask_cluster
import dea_tools.wetlands

# Create local dask cluster to improve data load time
client = create_local_dask_cluster(return_client=True)

Client

Client-13b76067-4a25-11ef-809c-2ece1b33e086

Connection method: Cluster object Cluster type: distributed.LocalCluster
Dashboard: /user/lauren.schenk@ga.gov.au/proxy/8787/status

Cluster Info

Connect to the datacube

Connect to the datacube so we can access DEA data. The app parameter is a unique name for the analysis which is based on the notebook file name.

[2]:

dc = datacube.Datacube(app="DEA_Wetlands_Insight_Tool")

Analysis parameters

  • poly: The polygon of your wetland of interest. This can be a shapefile or a GeoJSON. User will need to drag and drop the file into the sandbox and update the file path. Your polygon should be in EPSG:3577 GDA94 Australian Albers.

Note: Ensure that input shapefiles contain only 2D polygon geometries with no “z” dimension/coordinates. If this is not the case, “z” coordinates will need to be removed before the WIT notebook can be run.

Load a shapefile that describes your wetland study area

[3]:

# This cell loads and plots the wetlands polygon. If no output, check your polygon
poly = gpd.read_file("../Supplementary_data/DEA_Wetlands_Insight_Tool/hird.shp")
poly.geometry[0]

[3]:
../../../_images/notebooks_DEA_products_DEA_Wetlands_Insight_Tool_13_0.svg
[4]:

# Specifying coordinate reference system of the polygon.
gpgon = datacube.utils.geometry.Geometry(poly.geometry[0], crs=poly.crs)

[5]:

# Select time period. Consistent data is available from 01-09-1987.
time = ("2014-01-01", "2015-01-01")
# time = ('1985-01-01', '2024-01-01')

Load Landsat, Water Observations, and Fractional Cover:

Load and mask Landsat data

Load Landsat 5, 7 and 8 data. Not including Landsat 7 SLC off period (31-05-2003 to 06-04-2022). If the following cell successfully loads data, it will generate output text, similar to:

Finding datasets
    ga_ls8c_ard_3
    ga_ls7e_ard_3 (ignoring SLC-off observations)
    ga_ls5t_ard_3
Applying fmask pixel quality/cloud mask
Loading 8 time steps

For further information on the functions used here, go to the function documentation.

[6]:

# Define which spectral bands are being used in the analysis
bands = [
    f"nbart_{band}" for band in ("blue", "green", "red", "nir", "swir_1", "swir_2")
]

# Load Landsat 5, 7 and 8 data. Not including Landsat 7 SLC off period (31-05-2003 to 06-04-2022).
ds = dea_tools.datahandling.load_ard(
    dc,
    products=["ga_ls8c_ard_3", "ga_ls7e_ard_3", "ga_ls5t_ard_3"],
    ls7_slc_off=False,
    measurements=bands,
    geopolygon=gpgon,
    output_crs="EPSG:3577",
    resolution=(-30, 30),
    resampling={"fmask": "nearest", "*": "bilinear"},
    time=time,
    group_by="solar_day",
    dask_chunks={"time":1, "x": 2048, "y": 2048},
)

# Load into memory using Dask
ds.load()

Finding datasets
    ga_ls8c_ard_3
    ga_ls7e_ard_3 (ignoring SLC-off observations)
    ga_ls5t_ard_3
Applying fmask pixel quality/cloud mask
Returning 45 time steps as a dask array

[6]:

<xarray.Dataset> Size: 8MB
Dimensions:       (time: 45, y: 127, x: 61)
Coordinates:
  * time          (time) datetime64[ns] 360B 2014-01-05T00:10:35.094128 ... 2...
  * y             (y) float64 1kB -3.968e+06 -3.968e+06 ... -3.972e+06
  * x             (x) float64 488B 1.09e+06 1.09e+06 ... 1.091e+06 1.091e+06
    spatial_ref   int32 4B 3577
Data variables:
    nbart_blue    (time, y, x) float32 1MB 791.0 728.0 707.0 ... nan nan nan
    nbart_green   (time, y, x) float32 1MB 1.097e+03 1.025e+03 990.0 ... nan nan
    nbart_red     (time, y, x) float32 1MB 1.422e+03 1.339e+03 ... nan nan
    nbart_nir     (time, y, x) float32 1MB 2.151e+03 2.009e+03 ... nan nan
    nbart_swir_1  (time, y, x) float32 1MB 3.506e+03 3.378e+03 ... nan nan
    nbart_swir_2  (time, y, x) float32 1MB 2.41e+03 2.291e+03 ... nan nan
Attributes:
    crs:           EPSG:3577
    grid_mapping:  spatial_ref

Load Water Observations and Fractional Cover datasets

Load Fractional Cover and Water Observations data into the same spatial grid and resolution as the loaded Landsat dataset.

[7]:

ds_wo = dc.load(
    "ga_ls_wo_3", resampling="nearest", group_by="solar_day", like=ds, dask_chunks={"time":1, "x": 2048, "y": 2048}
)
ds_fc = dc.load(
    "ga_ls_fc_3", resampling="nearest", group_by="solar_day", like=ds, dask_chunks={"time":1, "x": 2048, "y": 2048}
)

# Load data into memory
ds_wo.load()
ds_fc.load()

[7]:

<xarray.Dataset> Size: 2MB
Dimensions:      (time: 76, y: 127, x: 61)
Coordinates:
  * time         (time) datetime64[ns] 608B 2014-01-05T00:10:35.094128 ... 20...
  * y            (y) float64 1kB -3.968e+06 -3.968e+06 ... -3.972e+06 -3.972e+06
  * x            (x) float64 488B 1.09e+06 1.09e+06 ... 1.091e+06 1.091e+06
    spatial_ref  int32 4B 3577
Data variables:
    bs           (time, y, x) uint8 589kB 12 9 11 15 19 16 16 ... 2 2 2 2 2 2 2
    pv           (time, y, x) uint8 589kB 7 5 7 13 10 6 7 8 ... 7 7 8 9 8 5 6 14
    npv          (time, y, x) uint8 589kB 80 85 81 71 70 77 ... 89 89 92 91 83
    ue           (time, y, x) uint8 589kB 9 10 10 9 8 8 9 10 ... 3 4 4 4 4 4 3 4
Attributes:
    crs:           PROJCS["GDA94 / Australian Albers",GEOGCS["GDA94",DATUM["G...
    grid_mapping:  spatial_ref

Locate and remove any observations which aren’t in all three datasets

[8]:

missing = set()
for t1, t2 in itertools.product(
    [ds_fc.time.values, ds_wo.time.values, ds.time.values], repeat=2
):
    missing_ = set(t1) - set(t2)
    missing |= missing_

ds_fc = ds_fc.sel(time=[t for t in ds_fc.time.values if t not in missing])
ds = ds.sel(time=[t for t in ds.time.values if t not in missing])
ds_wo = ds_wo.sel(time=[t for t in ds_wo.time.values if t not in missing])

Calculate Tasseled Cap Wetness from the Landsat data

We use Tasseled Cap Wetness (TCW) to identify areas in wetlands that are wet, but not identified by the WOfS algorithm as open water. This includes areas of mixed vegetation and water like in palustrine wetlands. TCW is the third component of a Tasseled Cap Index analysis and can be thresholded to classify wet pixels (Fisher et al., 2016). Tasseled Cap Index analysis is a linear principal component analysis of Landsat imagery with a Procrustes’ Rotation (Kauth and Thomas, 1976), producing three components roughly corresponding to brightness (TCB), greenness (TCG) and wetness (TCW; Roberts et al., 2018). The coefficients of Crist (1985) were used to calculate TCW.

TCW has values between −12,915 and 7032 when applied to DEA Landsat data. As TCW increases, the pixel becomes wetter, with open water having TCW values near and above zero (Pasquarella et al., 2016). We threshold TCW at −350, with values above this threshold used to characterise ‘wet’ pixels. We developed the TCW threshold to identify ‘wet’ pixels by comparing TCW to known inundation extents in the Macquarie Marshes, a large floodplain wetland in the Murray-Darling Basin of south-eastern Australia. We chose the threshold for the WIT workflow to minimise the absolute difference in extent between the observed inundated area and the area of thresholded TCW as described further here: https://link.springer.com/article/10.1007/s13157-023-01682-7#appendices

[9]:

tcw = dea_tools.bandindices.calculate_indices(
    ds, index="TCW", collection="ga_ls_3", normalise=False, drop=True, inplace=False
)

Dropping bands ['nbart_blue', 'nbart_green', 'nbart_red', 'nbart_nir', 'nbart_swir_1', 'nbart_swir_2']

Divide Fractional Cover by 100

Divide the FC values by 100 to keep them in \([0, 1]\) (ignoring for now that values can exceed 100 due to how FC is calculated) Keeps data types the same in the output raster.

[10]:

bs = ds_fc.bs / 100
pv = ds_fc.pv / 100
npv = ds_fc.npv / 100

Generate the WIT raster bands:

Create an empty dataset called output_rast and populate with values from input datasets.

[11]:

rast_names = ["pv", "npv", "bs", "wet", "water"]
output_rast = {n: xr.zeros_like(bs) for n in rast_names}

output_rast["bs"].values[:] = bs
output_rast["pv"].values[:] = pv
output_rast["npv"].values[:] = npv

Masking

  1. Mask pixels not in the polygon

  2. Use the Water Observations bit flags to mask noncontiguous data, low solar incidence angle, cloud, and water out of the wet category. We distinguish open water from wet as mutually exclusive categories.

Thresholding

We threshold TCW at −350, with values above this threshold used to characterise ‘wet’ pixels (Dunn, et al., 2023).

[12]:

# Rasterise the shapefile where poly is the vector data and pv is the xarray template
poly_raster = xr_rasterize(poly, pv) > 0

# Mask includes No data, Non contiguous data, Cloud shadow, Cloud, and water.
# See https://knowledge.dea.ga.gov.au/notebooks/DEA_products/DEA_Water_Observations/#Understanding-WOs-bit-flags for more detail.
mask = (ds_wo.water & 0b01100011) == 0
mask &= poly_raster

# Set open water to water present and classified as water as per Water Observations and bit flags
open_water = ds_wo.water & (1 << 7) > 0

# Set wet pixels where not masked and above threshold of -350
wet = tcw.where(mask).TCW > -350

[13]:

# Adding wet and water values to output raster

# TCW
output_rast["wet"].values[:] = wet.values.astype(float)
for name in rast_names[:3]:
    output_rast[name].values[wet.values] = 0

# WO
output_rast["water"].values[:] = open_water.values.astype(float)
for name in rast_names[:4]:
    output_rast[name].values[open_water.values] = 0

[14]:

# Masking again
ds_wit = xr.Dataset(output_rast).where(mask)

Mask entire observations where the polygon is more than 10% masked:

[15]:

# Calculate percentage missing
pc_missing = (~mask).where(poly_raster).mean(dim=["x", "y"])

ds_wit = ds_wit.where(pc_missing < 0.1)

The WIT results are now computed. All that’s left is to normalise them.

Normalise Fractional Cover Values in WIT result

Users are provided the option to normalise the WIT result. Normalisation only affects vegetation Fractional Cover values. We rescale Fractional Cover values by the area of the vegetation so that the total percentage adds to 1. This makes the graph more interpretable and is done as the Fractional Cover algorithm sometimes returns values which add to greater than 1.

We suggest normalisation when displaying the WIT plots but perhaps not if calculating population statistics.

[16]:

# Convert ds_wit: XArray.Dataset to polygon_base_df: pandas.DataFrame

polygon_base_df = pd.DataFrame()
polygon_base_df["date"] = ds_wit.time.values

for band in rast_names:
    polygon_base_df[band] = ds_wit[band].mean(dim=["x", "y"])

[17]:

polygon_base_df = dea_tools.wetlands.normalise_wit(polygon_base_df)

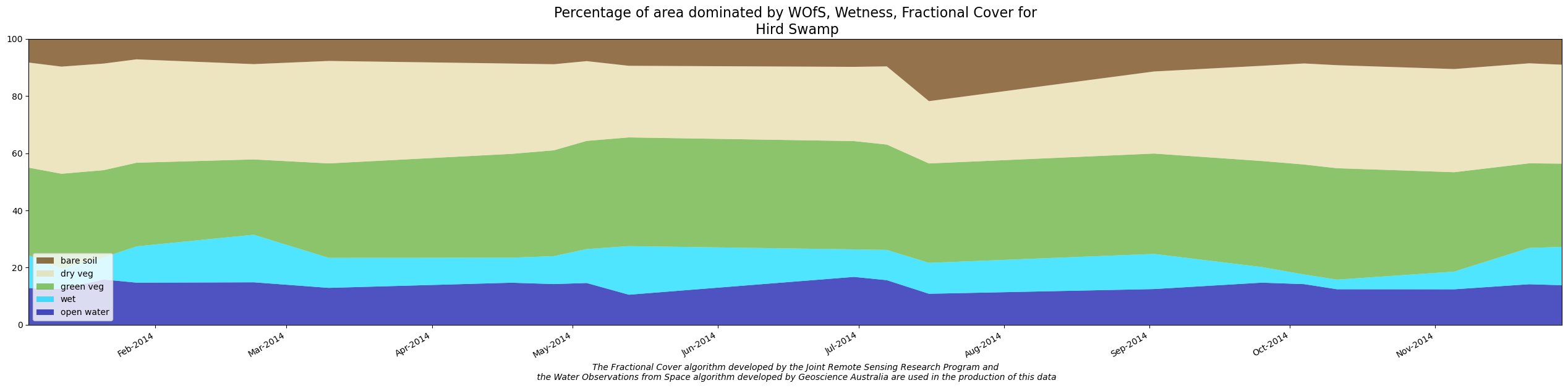

Create WIT Plot

Edit the polygon name in the cell below, if required. A png file will be created in this directory with the same name as the polygon, unless the png_name variable below is edited.

[18]:

polygon_name = "Hird Swamp"
png_name = polygon_name  # file will be png_name.png

[19]:

dea_tools.wetlands.display_wit_stack_with_df(polygon_base_df, polygon_name, png_name, x_axis_labels="months")
../../../_images/notebooks_DEA_products_DEA_Wetlands_Insight_Tool_40_0.png

Create WIT Comma-separated values (CSV) output file

The output file will show up in the file explorer in this directory.

[20]:

polygon_base_df.reset_index(drop=True, inplace=True)

[21]:

polygon_base_df.set_index('date', inplace=True)

[22]:

polygon_base_df.head()

[22]:
index pv npv bs wet water veg_areas overall_veg_num norm_bs norm_pv norm_npv off_value
date
2014-01-05 00:10:35.094128 0 0.302159 0.362029 0.081384 0.114499 0.128604 0.756897 0.745571 0.082620 0.306749 0.367528 0
2014-01-12 00:16:38.441350 1 0.326980 0.369096 0.095408 0.071147 0.125285 0.803568 0.791483 0.096864 0.331972 0.374731 0
2014-01-21 00:10:22.639905 2 0.300780 0.367310 0.084866 0.077162 0.158473 0.764364 0.752956 0.086152 0.305337 0.372875 0
2014-01-28 00:16:31.184708 3 0.288295 0.356392 0.070370 0.126921 0.147486 0.725592 0.715056 0.071407 0.292542 0.361643 0
2014-02-22 00:10:00.687733 5 0.259674 0.328546 0.086845 0.166356 0.148724 0.684920 0.675065 0.088113 0.263465 0.333342 0
[23]:

#set output csv name to polygon name
csv_name = polygon_name
#write WIT dataframe to csv without including the index row
polygon_base_df.to_csv(f"{polygon_name}.csv", index=False)

WIT CSV data specification table

measurement

description

data type

date

Date and time of satellite observation in UTC

datetime64[ns]

pv

Photosynthetic vegetation (pv) fraction. Green vegetation (leaves, grass, growing crops). From the DEA Fractional Cover Product generated using the Joint Remote Sensing Research Program Vegetation Fractional Cover algorithm and calculated as the proportion of the polygon with this cover type, not per pixel.

float64

npv

Non-photosynthetic vegetation (npv) fraction. Brown or dry vegetation (branches, dry grass or hay, and dead leaf litter). From the DEA Fractional Cover Product generated using the Joint Remote Sensing Research Program Vegetation Fractional Cover algorithm and calculated as the proportion of the polygon with this cover type, not per pixel.

float64

bs

Bare soil (bs) fraction. Bare ground (soil or rock). From the DEA Fractional Cover Product generated using the Joint Remote Sensing Research Program Vegetation Fractional Cover algorithm and calculated as the proportion of the polygon with this cover type, not per pixel.

float64

wet

Wet, not open water. Includes areas of mixed vegetation and water. From a thresholded (> -350) Tasseled Cap Wetness analysis. Calculated as the proportion of the polygon where pixels are not classified as open water or no-data and exceed the threshold by summing pixels.

float64

water

Areas that are classified as open water from the DEA Water Observations Product. Calculated as the proportion of the polygon containing water pixels as a sum.

float64

veg_areas

1 - water - wet . Used to normalise FC values.

float64

overall_veg_num

pv + npv + bs. Used to normalise FC values.

float64

norm_bs

bs / vegetation_overall_value * vegetation_area . Normalised values are generated for graph display and only affect Fractional Cover Values, which due to the spectral unmixing algorithm can produce values which sum to greater than 1. We rescale Fractional Cover Values by the area of the vegetation so that the total value is 1. Non-normalised values are for calculating statistics.

float64

norm_pv

pv / vegetation_overall_value * vegetation_area . Normalised values are generated for graph display and only affect Fractional Cover Values, which due to the spectral unmixing algorithm can produce values which sum to greater than 1. We rescale Fractional Cover Values by the area of the vegetation so that the total value is 1. Non-normalised values are for calculating statistics.

float64

norm_npv

npv / vegetation_overall_value * vegetation_area . Normalised values are generated for graph display and only affect Fractional Cover Values, which due to the spectral unmixing algorithm can produce values which sum to greater than 1. We rescale Fractional Cover Values by the area of the vegetation so that the total value is 1. Non-normalised values are for calculating statistics.

float64

off_value

off_value is 100 where there is low data quality and 0 for good data. This value indicates low quality data periods, including the Landsat 7 SLC-off period: https://www.usgs.gov/faqs/what-landsat-7-etm-slc-data and periods with an observation density of less than four observations within a twelve month (365 days) period.

float64

Additional information

License: The code in this notebook is licensed under the Apache License, Version 2.0. Digital Earth Australia data is licensed under the Creative Commons by Attribution 4.0 license.

Citations — If you use the DEA Notebooks and Tools repository in your work, please reference it with the following citation:

Krause, C., Dunn, B., Bishop-Taylor, R., Adams, C., Burton, C., Alger, M., Chua, S., Phillips, C., Newey, V., Kouzoubov, K., Leith, A., Ayers, D., Hicks, A., DEA Notebooks contributors 2021. Digital Earth Australia notebooks and tools repository. Geoscience Australia, Canberra. https://doi.org/10.26186/145234

To cite this notebooks’ dataset and research papers in your work you can use the Publications at the top of this notebook.

Contact: If you need assistance, please post a question on the Open Data Cube Discord chat or on the GIS Stack Exchange using the open-data-cube tag (you can view previously asked questions here). If you would like to report an issue with this notebook, you can file one on GitHub.

Last modified: July 2024

Compatible datacube version:

[24]:

print(datacube.__version__)

1.8.18

Tags

**Tags**: :index:`calculate_indices`, :index:`sandbox compatible`, :index:`landsat 5`, :index:`landsat 7`, :index:`landsat 8`, :index:`time series`, :index:`Wetlands_Insight_Tool_(WIT)`, :index:`water observations`, :index:`fractional cover`, :index:`tasseled cap`
